QS

Integral Bi-directional Seal Knife Gate Valve non-groove Wear-Resistant

Model:
QSZ73X
Working Pressure:
DN50-DN100 10bar
DN125-DN200 8bar
DN250 5bar
Design Standard:
MSS SP-81
Flange Standard:
PN10/PN16 150LB TE TD
Face to Face:
MSS SP-81
Testing Standard:
API-598
Operation:
handwheel, electric, pneumatic, hydraulic, sprocket, electro-hydraulic, gear
Main Material:
GGG40
Disc Material:
SS316L, SS304
Sealing Material:
PU
Packing:
Aramid fiber, high-water based fiber, rubber, PTFE
Applicable Medium:
Applicable for coal in power plant, slag discharge, sewage treatment, food, paper making, medicine, petroleum and chemical industry, water, Oil, steam, connecting or cutting grout, gold powder, ores, slag, coal, pulp, wood pulp, tailings, fibers, dust, chemicals, sewage treatment, sedimentation tanks, asphalt, bunker export, fruit juices, cereals, slaughter plant waste and other media.

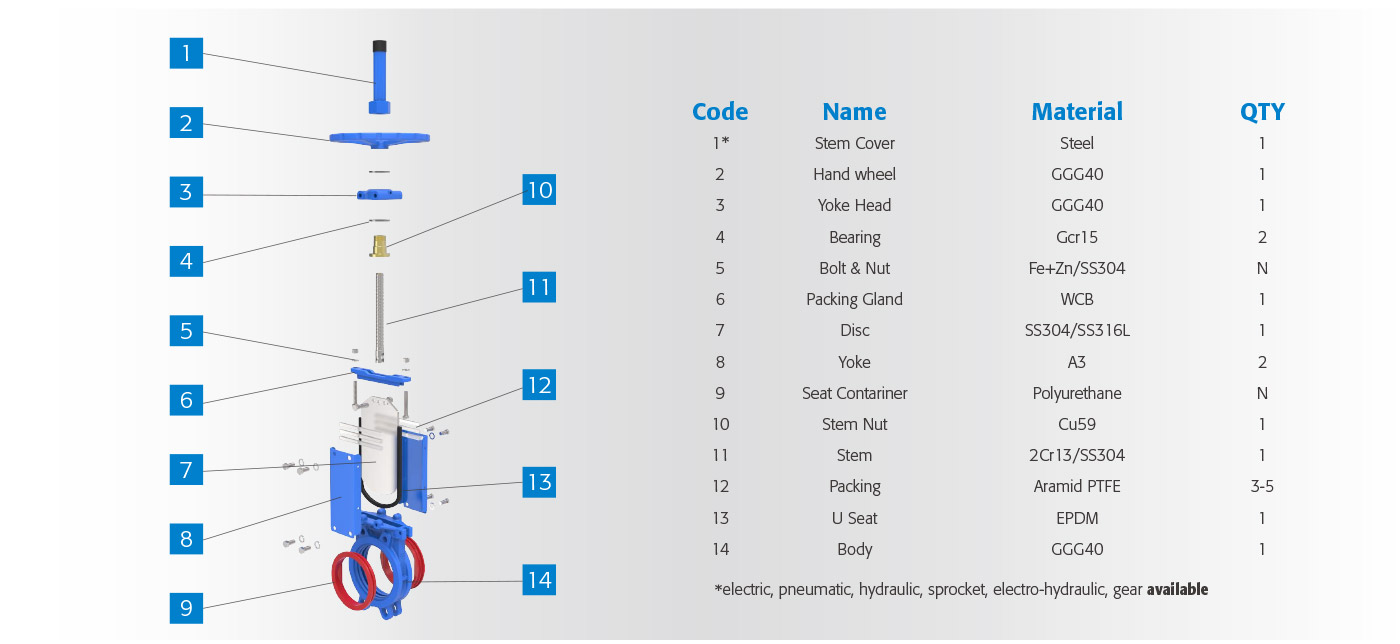

QS Series No groove bi-directional seal knife gate valve, cast iron body with the over all structure knife gate valve, including valve’ body, gate, and U-shaped flexible seal at the bottom of the body with grooves and polyurethane Seat cover. When the valve is closed, the bottom of the gate edge contact with the seal and then compress the seal into the groove in the body and sealed gate realization; when the gate opens, separate gate from the bottom edge of the seal, seal will bounce to same level as groove, which will prevent the media sediment accumulated in the body cavity of the groove, no clogging, no residue, pipe easy to clean, so as to effectively improve the sealing effect knife gate valve to prevent leakage when the valve is closed.
